Parent Layer: Faults, Fractures, Folds

Name: All_lineaments_integrated_IL_Basin

Display Field: TEXT

Type: Feature Layer

Geometry Type: esriGeometryPolyline

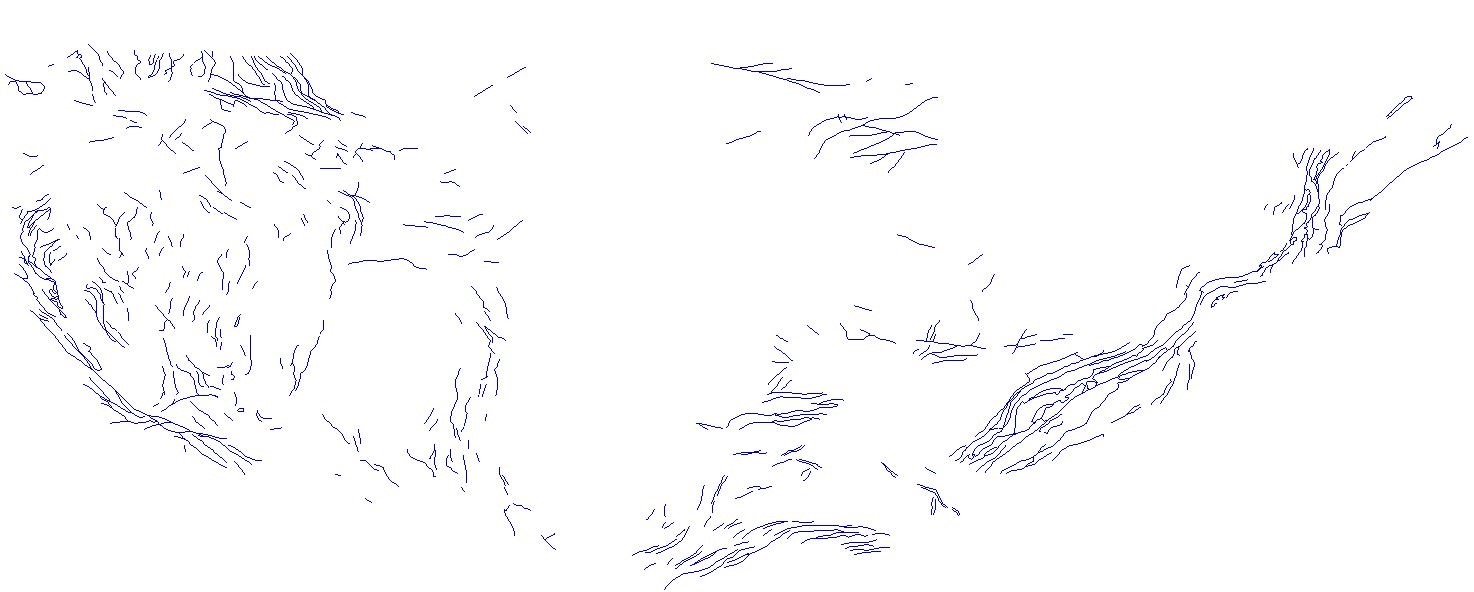

Description: This line shapefile represents the major fault lines in the United States. A fault is a fracture or fracture zone in the Earth's crust along which rocks on one side have moved significantly with respect to those on the other side. This layer is part of the Geologic Map of the United States, originally published at a scale of 1:2,500,000 (King and Beikman, 1974b). It excludes Alaska and Hawaii. These data depict the geology of the bedrock that lies at or near the land surface, but not the distribution of surficial materials such as soils, alluvium, and glacial deposits. This is a revised version of the April 2004 data set. This map complements the Generalized Geologic Map of Alaska, Hawaii, Puerto Rico, and the U.S. Virgin Islands by Reed and Bush. This layer is part of the 1997-2014 edition National Atlas of the United States.

Service Item Id: f64fb0bf2e0149dcab422ce830b63937

Copyright Text: National Atlas of the United States. (2005). Fault Lines: Geology of the Conterminous United States, 2005. National Atlas of the United States. Available at: http://purl.stanford.edu/tt369vk9000.

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: false

Supports Statistics: false

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -1.02549959915E7
YMin: 4348035.627999999
XMax: -9422103.7323
YMax: 5197692.166800002
Spatial Reference: 102100  (3857)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [0, 92, 230, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: false
Supports OrderBy: false
Supports Distinct: false
Supports Pagination: false
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: false
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• FID ( type: esriFieldTypeOID, alias: FID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• FNODE_ ( type: esriFieldTypeDouble, alias: FNODE_ )
• TNODE_ ( type: esriFieldTypeDouble, alias: TNODE_ )
• LPOLY_ ( type: esriFieldTypeDouble, alias: LPOLY_ )
• RPOLY_ ( type: esriFieldTypeDouble, alias: RPOLY_ )
• LENGTH ( type: esriFieldTypeDouble, alias: LENGTH )
• FAULTL_ ( type: esriFieldTypeDouble, alias: FAULTL_ )
• FAULTL_ID ( type: esriFieldTypeDouble, alias: FAULTL_ID )
• CODE ( type: esriFieldTypeInteger, alias: CODE )
• TEXT ( type: esriFieldTypeString, alias: TEXT, length: 80 )
• Shape_Leng ( type: esriFieldTypeDouble, alias: Shape_Leng )
• Length_Km ( type: esriFieldTypeDouble, alias: Length_Km )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates
